Description

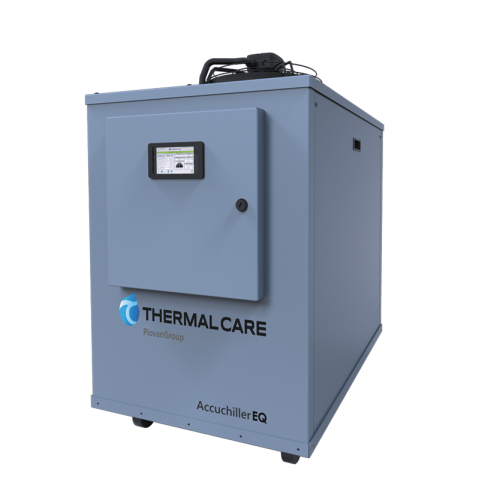

Accuchiller EQ Series
1 to 3 Ton Portable & Packaged Chillers
Portable & Packaged Chillers
Accuchiller EQ Series portable industrial chillers feature a compact footprint with an easily accessible interior and a PLC controller that provides precise temperature control and extensive diagnostics. Air-cooled, water-cooled and remote condenser models are packed with many standard innovative features that improve chiller performance and reliability.
Overview
- Air-cooled 1 to 3 tons (4 to 11 kW)
- Water-cooled 2 to 3 tons (7 to 11 kW)
- Remote condenser 3 tons (11 kW)
- PLC controller provides diagnostics and precise temperature control
- Nonferrous process fluid circuit
- Direct drive scroll compressor
- Generously sized air-cooled condensers for industrial environments with ambient temperatures up to 115°F (46°C)
- Internal insulated polyethylene reservoir with large capacity and a removable top
- Condenser fan discharges air quietly through top of the chiller
- Process Y-strainer protects the evaporator from contaminants in the water
- Stainless steel brazed plate evaporator with flow and temperature safeties to guard against freezing
- Removable inlet air filter (air-cooled units only) is easily cleaned and protects condenser coils to assure maximum efficiency
- High efficiency quiet fans
- Modular hot gas bypass provides accurate capacity control and extends compressor life
- Low voltage 24 VDC control keeps the control circuit signals free from AC interference
- Water regulating valve keeps refrigerant pressure constant (water-cooled units only)
- Evaporator freeze-up protection reduces potential for evaporator damage
- Easily removable side panel allows for easy access to interior components
- Modbus RTU communication
- EPA approved low GWP R-454B refrigerant
Available Options
Accuchiller EQ Series
- C-UL 508A industrial control panel with single point electrical connection
- Rotary non-fused disconnect for quick and safe main power disconnect
- 5 year compressor parts warranty
- Alarm horn
- Return piping kit
