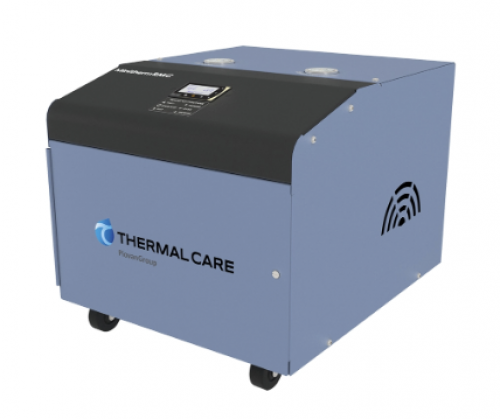

Mini-Aquatherm RMC Series
RMC Temperature Controllers
Available in 2 models; designed for a better level of control and data.
The Mini-Aquatherm is similar to the Aquatherm but almost half the size.
Mini-Aquatherm RMC Series mold temperature controllers provide the best available components such as cast pump volute/heater tube/mixing assemblies, high flow pumps with leak-resistant silicon carbide seals and rugged Incoloy sheathed heaters for years of maintenance free operation. Each temperature control system comes with a large, user-friendly operator interface that provides a wide array of operational and diagnostic information.
RMC Family
Overview
RMC Series
- 1/3 & 1/2 HP (.25 & .37 kW)
- 3 kW and 6 kW heat range
- High flow pumps
- Leak-resistant, silicon carbide severe-duty pump seal
- Long-life, low-watt density Incoloy heaters resist corrosion better than copper or stainless steel
- Heavy-duty cast-iron pumps, heater tubes, and mixing tubes with O-ring seals reduce threaded fittings that can cause internal pressure losses and are prone to leaks
- 24 VDC control circuit power
- Tilted front panel angled for optimal viewing
- Intelligent vent control - at start-up the automatic vent sequence deactivates when the mold circuit is above 120°F 49°C) to avoid cooling of the mold after temporary power interruptions
- Adjustable deviation alarm time delays
- Supply and return temperature display
- Solid top protects motor from dirt or fluid contamination
- Four swivel casters for easy movement
- Lifetime pump/heater casting warranty
- Lifetime pump seal warranty
- 3 year parts, 3 years labor
RMC Premium Mold Temperature Control Units
Additional Features
- Touch screen HMI with PLC
- Digital process pressure
- Digital flow meter
- Data logs & charting
- Recipes
- Pressure transducers
- Solid state relay heater controls
- 4-20mA or 0-10vDC process temperature retransmit
- Seal saver automatically cools process water down to 100°F when unit shuts off to extend life of seal and for operator safety
- Pump running hours display
- Alarm horn and silence switch
- Electrical phase error
- Adaptive maximum setpoint
- Adaptive pressure relief
- Password protection
- System statistics
- Trending data
- Modbus TCP/Ethernet & OPC/UA, SPI, and RS-485 communications
- Alternate setpoint swap
Available Options
Mini-Aquatherm RMC Premium Series
- Rotary non-fused disconnect switch
-C-UL508 industrial control panel
- Remote temperature probe
- 250°F (121°) maximum operating temperature
- Electrical phase error
- SPI communications
- High performance cooling solenoid valve
RMC Standard
Additional Features
- PLC controller
- Top facing pressure gauges
- Pump and heater running hours display
- Temperature deviation warnings and alarms
Available Options
Mini-Aquatherm RMC Standard Features
- Mold purge
- High performance solenoid valve
