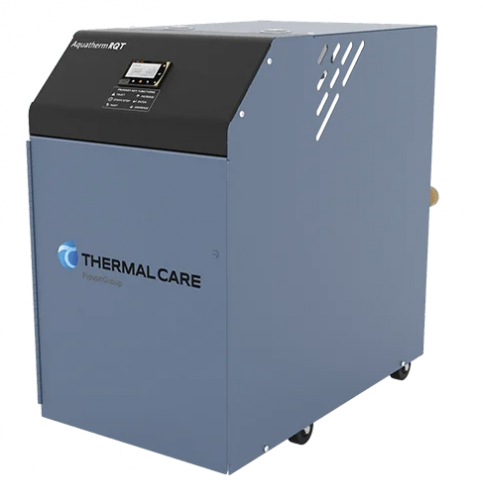

Aquatherm RQT Series Standard
RQT Mold Temperature Control Units
Available in 3 models; designed for a better level of control and data.
Accurate, dependable and easy-to-use
When you need a compact water temperature control unit for your application, you can count on Thermal Care. We understand how to meet your temperature control equipment needs.
Aquatherm RQT Series temperature controllers provide the best available components such as cast pump volute/heater tube/mixing assemblies, high flow pumps with leak-resistant silicon carbide seals and rugged Incoloy sheathed heaters for years of maintenance free operation. Each control system comes with a large, user-friendly operator interface that provides a wide array of operational and diagnostic information.
Overview
- From 3/4 to 10 HP, 0 to 48 kW
- High flow pumps
- Leak-resistant, silicon carbide severe-duty pump seal
- Long-life, low-watt density Incoloy heaters resist corrosion better than copper or stainless steel
- Heavy-duty cast-iron pumps, heater tubes, and mixing tubes with O-ring seals reduce threaded fittings that can cause internal pressure losses and are prone to leaks
- Built-in sediment trap and pump seal flush line extends life of pump seal
- 24 VDC control circuit power
- Tilted front panel angled for optimal viewing
- Intelligent vent control - at start-up the automatic vent sequence deactivates when the mold circuit is above 120°F (49°C) to avoid cooling of the mold after temporary power interruptions
- Adjustable deviation alarm time delays
- Supply and return temperature display
- Solid top protects motor from dirt or fluid contamination
- Four swivel casters for easy movement
- Lifetime pump/heater casting warranty
- Lifetime pump seal warranty
- 3 year parts, 3 year labor warranty
Additional Features
- PLC controller
- 9 kW, 12 kW, or 18kW
- 3/4 HP, 1 HP, 2 HP, or 3 HP
- High performance solenoid valve
- Top facing pressure gauges
- Pump and heater running hours display
- Temperature deviation warnings and alarms
Available Options
Aquatherm RQT Standard Series
- Stacking rack
- Mold purge
