Inline Magnets are magnetic separators used to remove ferrous contaminants from materials conveyed through pipelines. Designed for both gravity-fed and pneumatic systems, they support a wide range of industrial applications, including food processing, plastics, ceramics, and bulk material handling.
Constructed from durable stainless steel, Inline Magnets are available in standard, food-grade, and sanitary models to meet USDA and FDA requirements. Depending on the model, they feature either side-mounted plate magnets (as in Gravity and Pneumatic Inline Magnets) or centrally located cartridge or cone-style magnets (as in center-flow) to ensure efficient metal capture.
Available with either Ceramic or Neodymium Rare Earth magnets, these systems can be tailored to specific application needs. Ceramic magnets offer a wider but weaker field suitable for capturing larger metal pieces, while Neodymium magnets provide a stronger, more focused field ideal for fine metal particles.
Inline magnets are typically used in pipelines ranging from 50mm (2") to 250mm (10") in diameter, with custom sizes available. Many models feature easy-access doors or hinged housings for quick cleaning, minimizing downtime during maintenance.
Whether your goal is product purity, regulatory compliance, or equipment protection, Inline Magnets provide powerful, reliable magnetic separation that keeps your process running smoothly.
Options:
Pneumatic Inline Magnet
Captures ferrous contaminants from pneumatic conveying systems without interrupting product flow. Its powerful rare earth magnetic circuit and streamlined housing maintain line pressure while protecting downstream equipment.

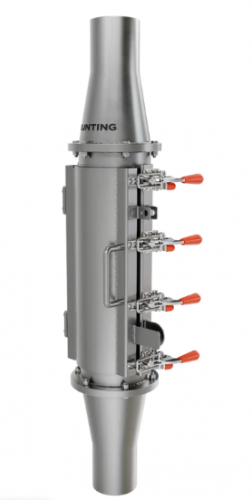

Center Flow Magnet
Removes fine ferrous particles from pneumatically conveyed granular or pelletized materials. Its tapered, aerodynamic design maintains flow velocity while maximizing contact with a high-strength magnetic cartridge.
Gravity Flow Inline Magnet
Efficiently captures ferrous contaminants from gravity-fed product streams. Its tapered step magnet design ensures maximum tramp metal removal even in tight spaces, maintaining smooth product flow and protecting downstream equipment.
HD Center Flow Magnet
Heavy-duty cylindrical magnet housed in stainless steel. Ideal for removing large tramp metal from high-volume gravity flow applications.
